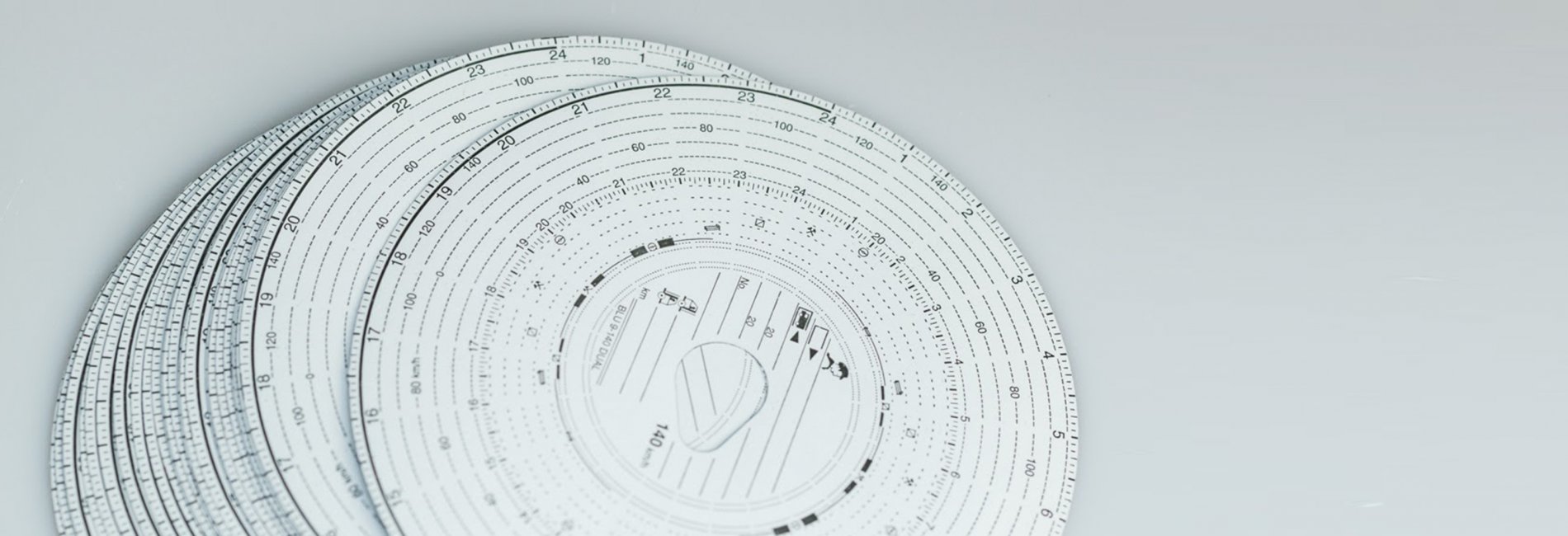

Wax paper is a wood-free product with a mostly black underprint and a pressure-sensitive layer applied on top. This layer is opaque, i.e. impermeable to light, and becomes transparent when subjected to pressure, e.g. from metal pins in the recording device. In this way, the underprint appears again. This then results in a typeface that can display a wide range of information. This quality is therefore used as recording paper, e.g. in measuring stations, on the railroads or in older trucks (speedometer discs).

Stability and handling

Stability:

  • The product is heat and temperature stable up to approx. 100 °C
  • The image withstands short contact with water, oil and fuels
  • Good dimensional stability in changing climates

Handling:

  • The recommended storage and processing conditions are 23 ± 5 °C and 50 ±10 % relative humidity

Unsere Produkte

7P150 Einseitiges Wachspapier

7P150 Einseitiges Wachspapier

Produktcharakteristik

Wert Einheit Prüfmethode
Flächengewicht 135 ± 10 g/m² ISO 536
Dicke 137 ± 15 µm ISO 534
Feuchtedehnung quer (CD) < 1 % DIN 53130
Weiße coated side ≥ 65 % ISO 2470
reverse side ≥ 85 % ISO 2470
Bindung (coated side) ≥ 0,75 m/s ISO 3782

7P150D Doppelseitiges Wachspapier

7P150D Doppelseitiges Wachspapier

Produktcharakteristik

Wert Einheit Prüfmethode
Flächengewicht 145 ± 10 g/m² ISO 536
Dicke 145 ± 15 µm ISO 534
Feuchtedehnung quer (CD) < 1 % DIN 53130
Weiße ≥ 65 % ISO 2470
Bindung (Schichtseite) ≥ 1,20 m/s ISO 3782
